Spring diamond rope saw for marble quarrying
Differences between Spring diamond rope wire and normal rope wire

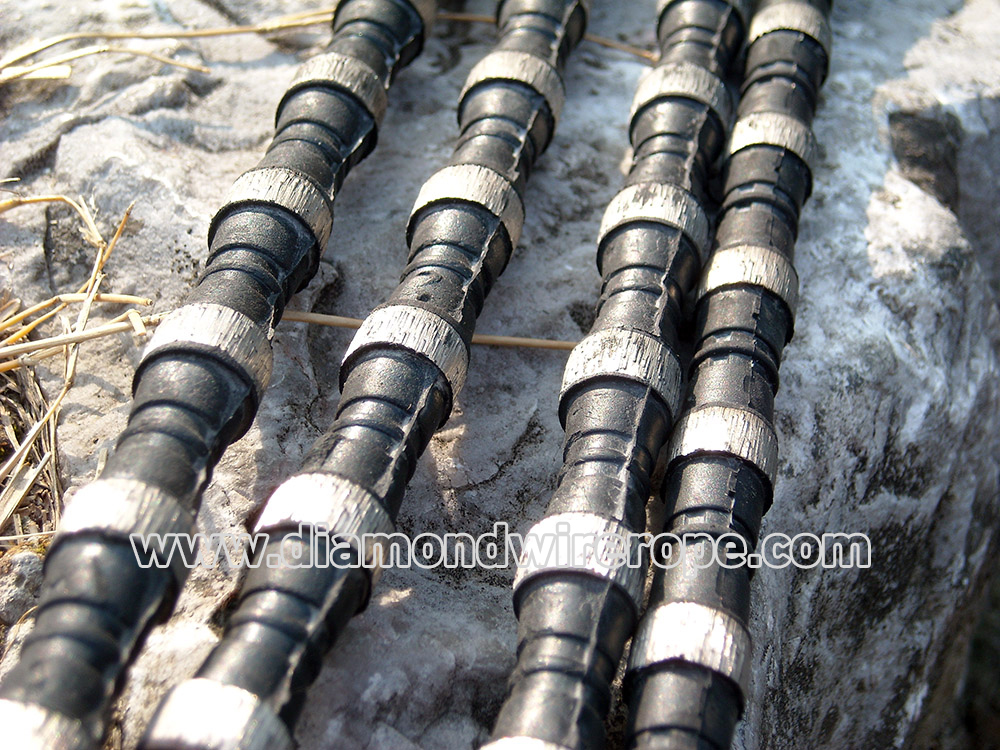

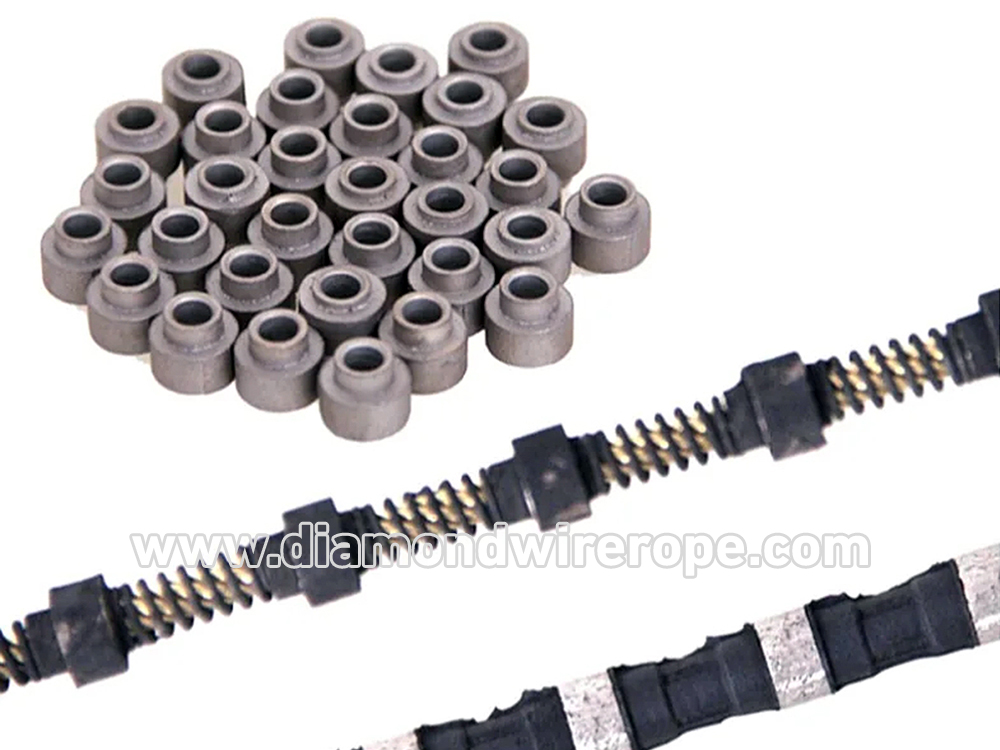

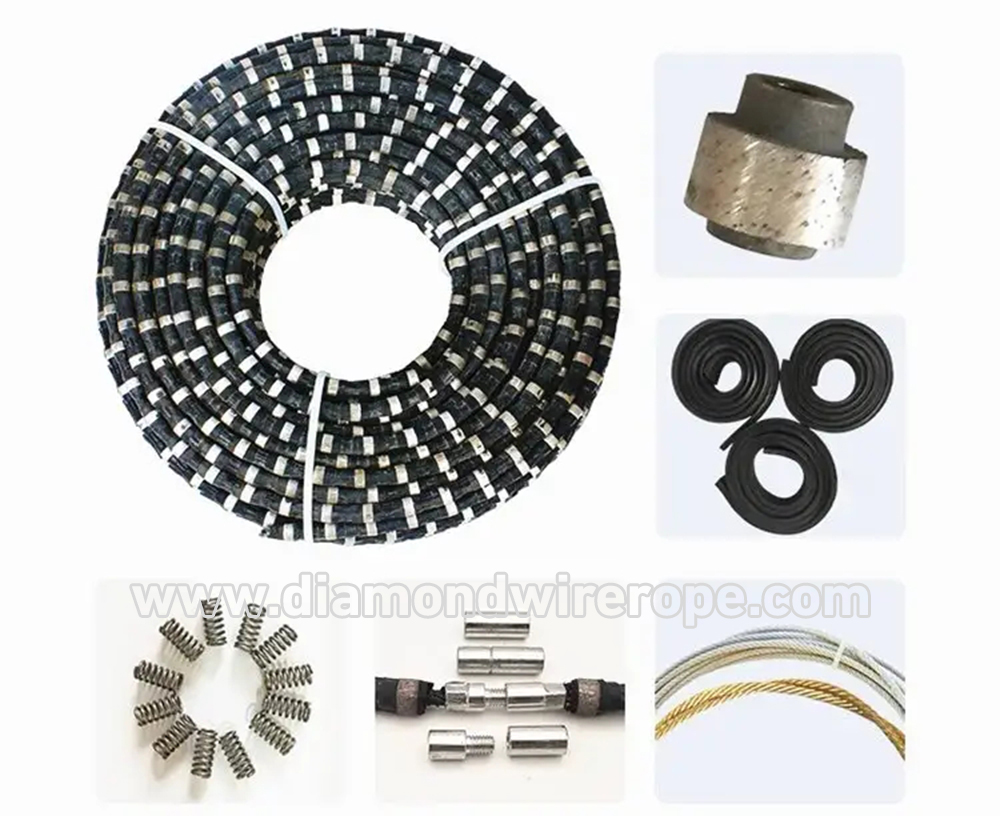

As follow picture, The difference spring diamond rope wire and normal rope wire is that when threading the beads onto the steel wire rope, a spring is added between the beads in the spring diamond rope wire. This spring can protect the steel wire rope. Simply speaking, spring diamond rope wire can cut any type of marble, normal rope wire withnot spring is mainly used to cut marble with medium hardness and above.
Spring diamond rope wire Overview
The spring diamond rope wire for marble quarrying is an efficient cutting tool specifically designed for marble quarrying and block dressing. This product features a unique spring design that effectively protects the steel wire rope inside the rope saw, significantly extending its service life. Combined with advanced diamond - beaded technology, it is suitable for stone quarrying in marble quarrying and the blocks dressing. We offer a standard model of ￠11.5 and also provide customization services to meet the special needs of different customers.
Spring diamond rope wire Technical parameters
| Item | Description |
|---|---|
| Size(mm) | ￠11.5 |
| Beads per meter | 28-30 |
| Linear speed (m/s) | 20-35 |
| Cutting speed (cm/h) | 5-12 |
| Cutting life (m²/m) | 10-30 |
| Fixed by | High - performance rubber and Spring |
| Cutting Object | Marble |
Spring diamond rope wire Application

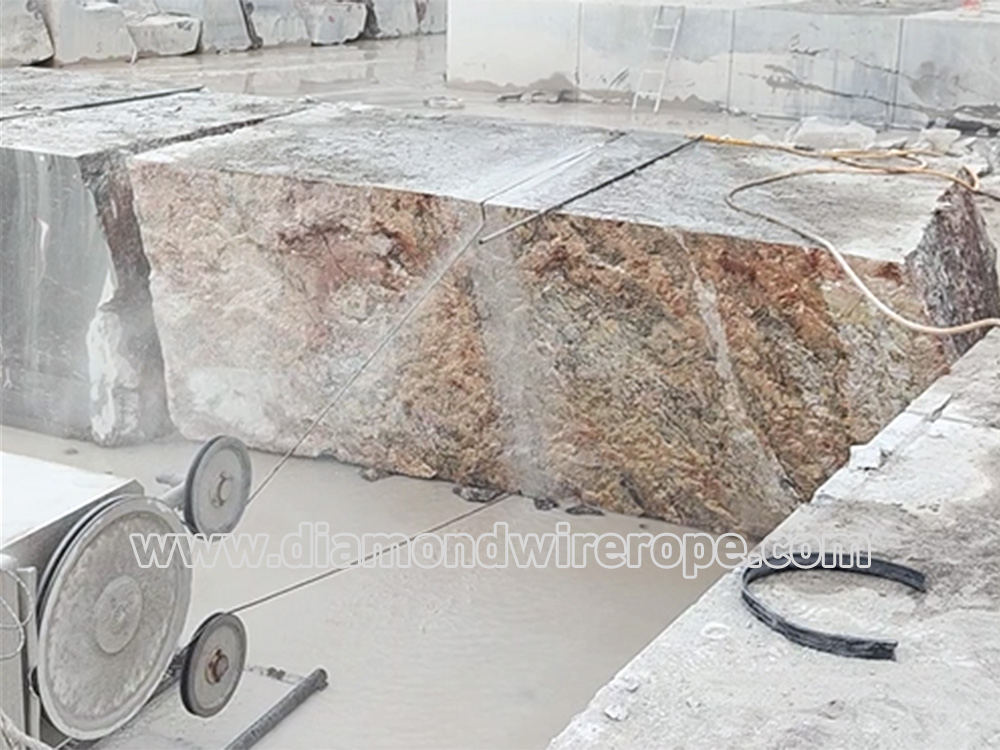

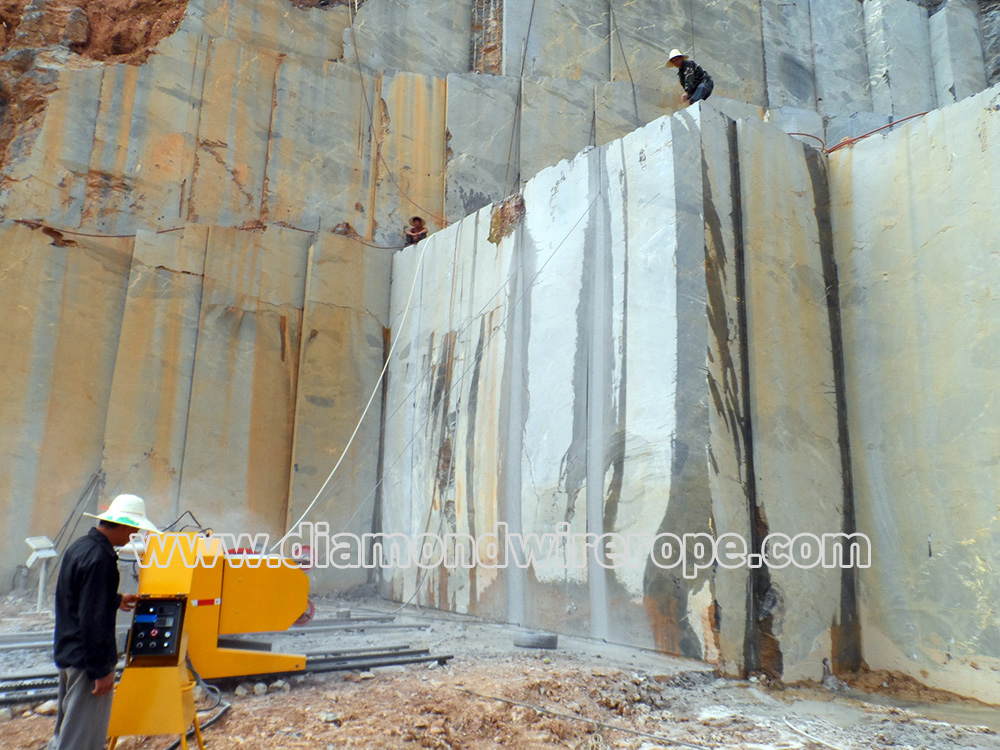

1. Marble quarrying:
For quarrying marble in marble mines, this method features a fast cutting speed, excellent abrasion resistance, and a high stone yield rate. It is the optimal quarrying approach for extracting marble.
2. Block dressing:
Shape the marble blocks precisely to get blocks of the standard size.
Spring diamond rope wire Advantages

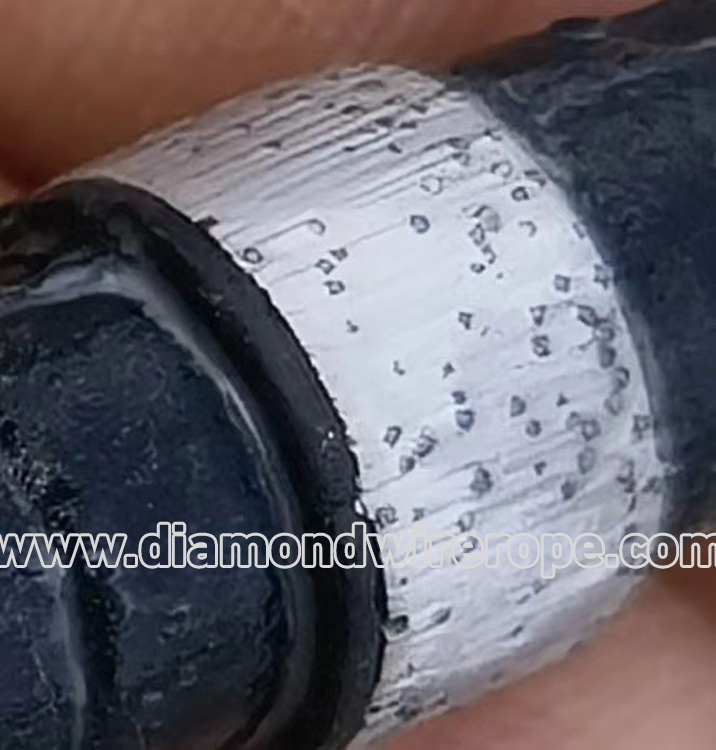

1. **Spring Design for Extended Lifespan**
- The spring design effectively safeguards the steel wire rope inside the beaded rope. It reduces the risk of breakage caused by external impacts, remarkably extending the service life. (It can extend the cutting life by 30% - 50% compared to normal diamond rope.)
2. **High - efficiency Cutting Ability**
- The high - performance diamond beaded technology, combined with high - speed cutting, significantly enhances the cutting efficiency.
- The standard model with a diameter of ￠11.5mm is suitable for the needs of most marble quarrying and block dressing operations.
3. **Strong Adaptability**
- The design of the single standard model ￠11.5 takes into account both universality and the requirements of high - strength cutting.
- Customized formula services are provided to adapt to the cutting efficiency requirements of different types of marble.
4. **High Durability**

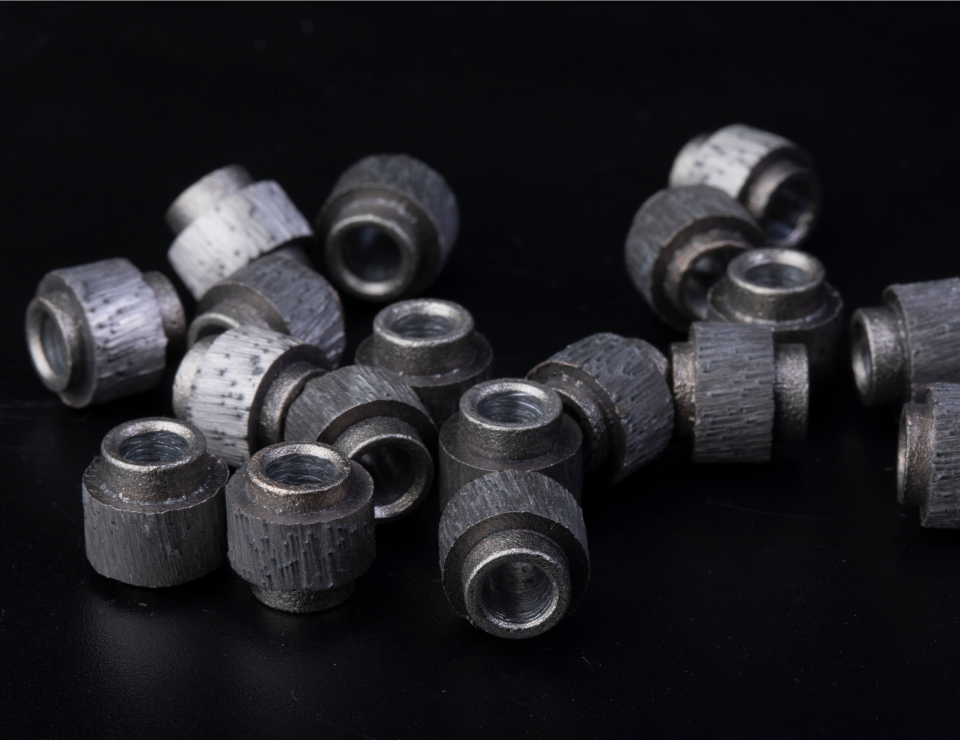

- High - quality diamond beads extend the service life and reduce the replacement frequency.
- The fixing method using high - performance rubber and springs improves the product's stability.
5. **Energy - saving and Environment - friendly**
- Optimized cutting parameters reduce energy consumption and material waste.
- The circulating cooling system decreases the water consumption, which is in line with the concept of green processing.
Customer Reviews
Ivan Ivanov (Russia):
"This diamond beaded rope performs outstandingly in marble quarrying! It has a high and stable cutting efficiency, and the cutting surface is smooth. It fully meets our requirements. The price is reasonable, making it an ideal choice for marble mining!"
Marco Rossi (Italy):
"We've been using this diamond beaded rope for wet - cutting operations, and the results are excellent! Its cutting efficiency is extremely high, and the beaded design is very durable, showing great performance in cutting tasks. Overall, this is a reliable and professional product!"
James Wilson (USA):
"The spring design is really practical. It significantly protects the steel wire rope, greatly reducing maintenance costs and downtime!"
Diamond Cut Rope Customization Options
1. Length customization:
The default length is 50 meters per roll. Customized length options are available.
2. Cutting object customization:
Based on different types of marble and hardness, diamond beaded ropes with different formulas can be customized.

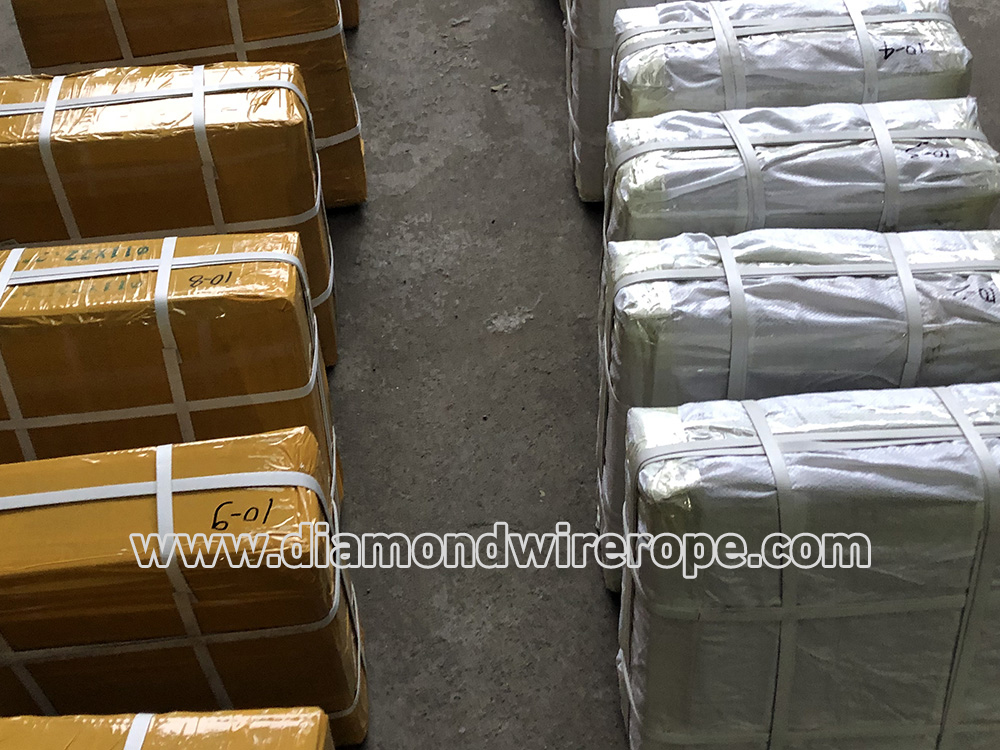

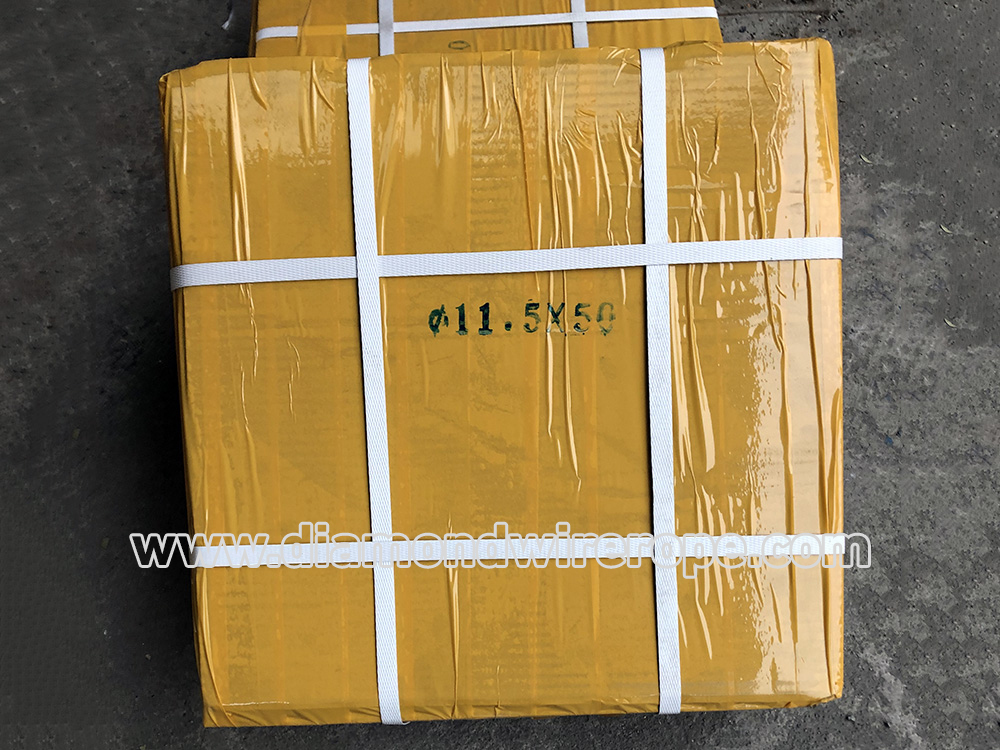

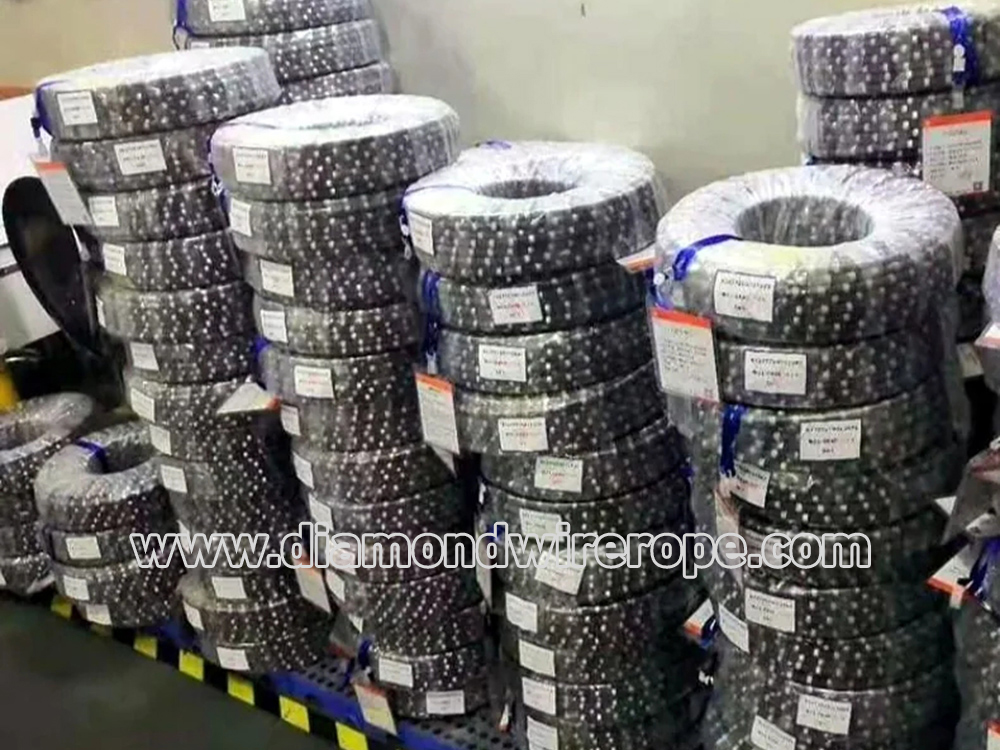

3. Packaging customization:
Customized packaging services are provided to ensure the product is safe and undamaged during transportation. Customized customer packaging is available, and the customer's LOGO can be printed to ensure the image recognition of the customer's product.
4. Special function customization:
Customized solutions are provided for special needs.
Diamond Cut Rope Purchase Information
1. Minimum Order Quantity:
The minimum order quantity for a single purchase is 1 roll (50 meters).
Volume purchases can enjoy a price discount.
2. Delivery Cycle:
The delivery cycle for standard products is 15 - 20 working days.
The delivery cycle for customized products is 20 - 30 working days (The specific time depends on the complexity of customization).
3. Shipping Method:
Air transportation (urgent orders), sea transportation (large-volume orders), land transportation (Europe and adjacent areas).
Provide international logistics services, including customs clearance assistance.
4. Payment Method:
Support various payment methods: Telegraphic Transfer (T/T), Alipay, PayPal, etc.
After-sales Service
1. Technical Support
Offer 24-hour online technical support to quickly solve problems during use.
2. Training Service
Provide operation training and technical guidance videos to help customers quickly master the equipment usage methods.
Why Choose It?
Precise Cutting: Ensure the accuracy and smoothness of processing complex shapes and curved surfaces.
High Cost-performance: The combination of efficient cutting and long-service-life beads reduces the cutting cost per unit area.
Reliable Support: Provide comprehensive technical support and after-sales service to ensure worry-free use.
